PA Series - Our Single Stage, Back Pull-out, End-Suction Centrifugal Pump

The PA Series Pump is a single stage, back pull-out, end-suction centrifugal pump. It is available in 41 sizes, from 2x1.25-5 (50x32-130) to 12x10-16 (300x250-400) for heads up to 690 feet and flows to 5300 GPM.

PA Series Fire Pump - Our Centrifugal End Suction Back Pull Out Fire Pump

The PA Series Fire Pump is specifically designed and ruggedly constructed to meet the requirements of the Fire Protection Industry. These pumps are built to International Standard DIN 24255 and tested to AS 2941-2008 widh Fire Safety Products (FSP) Certification under SETSCO Certification Body of Singapore.

Paragon Centrifugal End Suction Back Pull Out Fire Pump offers a complete range of PA Series of pumps for vital role of protecting life & property in Fire Protection industry.

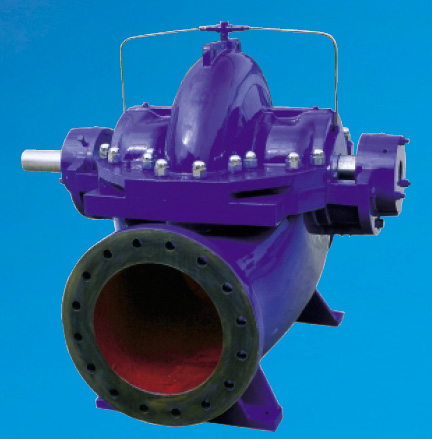

PS Series - Our Double Suction, Horizontal, Split Case Centrifugal Pump

The PS Series is a double suction, horizontal, split case centrifugal pump available in 46 sizes from 5x3-8 (125x80-210) to 36x36-31 (900x900-780) for heads up to 656 feet (200 m) and flows up to 80,000 GPM (18,000 m³/hr.). The PS Series has a maximum operating pressure of 435 PSI (30 bar) and a maximum operating temperature of 221o F (105o C).

PV Series - Our Stainless Steel Vertical Multistage Pump for Clean Water or Liquids

The PV Series is a stainless steel vertical multistage pump available in eight sizes with up to 26 stages. These pumps are suitable for clean water or liquids. They are widely used for high buildings, plants, mining, city water supply systems and irrigation.

PM Series - Horizontal Multistage Stainless Steel Pumps for Clean Water or Liquids

The PM Series pumps are horizontal multistage stainless steel pumps available in four sizes up to 6 stages. These pumps, used for clean water or liquids of which chemical and physical characteristics are similar to those of water, are widely used for high buildings, general industrial, circulation water supply systems, etc.

CP Series - Commercial, Residential and Industrial Submersible Sewage Pump

CP Submersible Sewage Pumps are designed for economical and reliable pumping of sewage water from commercial, residential and industrial sources. They are suitable for pumping clear and waste water containing solid and fibrous material.

SP Series - Our Submersible Sewage Pumps with Blockage-Free Vane

SP Submersible Sewage Pumps are mainly used to pump waste, sewage and mud with solids for municipal, industrial waste-treatment plants and dewatering at construction sites. They exhibit excellent performance due to an impeller with a single or double blockage-free vane, which avoids jamming and clogging. They are very convenient to install; a quick disconnect, portable version of this pump is available.

PEM Series - Our High Efficiency / Low Noise Electric Motor

PEM Series motors are available in Squirrel Cage and Totally Enclosed Fan Cooled (TEFC) designs offering high efficiency and low noise. The motors are built to IP54 with Class F insulation but the junction box conforms to IP55. The three phase motors are available in fifteen (15) frame sizes with rated output from 0.25 HP (0.18 kW) to 425 HP (315 kW). Motors can be mounted horizontally or vertically.

PIL Series - Single Stage Close Coupled Type In-Line Centrifugal Pump

PIL series is a single stage close coupled type in-line centrifugal pump. It is driven by a TEFC standard electric motor according to IEC & DIN standard.

PAZ Series - Single Stage Close Coupled Centrifugal Pump

PAZ single stage close coupled centrifugal pump with performance and dimensions in accordance with DIN24255 standard, horizontal installation.

PBS Series - Submersible Borehole Pump

The PBS series submersible borehole pump is mainly used for raw clean water supply.

P-ISO Series Pumps

The P-ISO Series Pump is a single stage, back pull-out, end-suction centrifugal pump.

MD Series Pumps

MDV, MDE,MDH series multistage pumps utilize a modular design concept which maximizes component interchange ability. As such, multiple design configurations can be engineered to meet customers requirements without compromise to repair parts inventories.

Close radial type impeller designed for casing wear rings on both sides. Axial thrust is minimized by balance holes for minimum bearing loads and maximum bearing lifetime.

Diffusers separated from stage casings, easily exchangeable. Balanced radial forces, minimum shaft deflection, minimum vibrations.

VT Series Pumps

The 4 different model vertical turbine pumps have one thing in common - the hydraulic design of the pump bowl assembly. Using new techniques, it covers a wide range of hydraulic conditions to meet virtually every pumping service with optimum efficiency.

Flexibility of design allows the use of a wide range of material and design features to meet the custom requirements of our users. Our VT series vertical turbine will satisfy you no matter what the requirements: whether low first cost, ease of maintenance, or optimum efficiency. Tough service conditions can make the pump best satisfy the requirements.
